🔧 Flashing your LITE interface to version "C" for Diagbox
Do you have an interface with the number 963830B or 921815B ?
The "B" indicates that it is a LITE interface , requiring an update to be correctly detected in Diagbox.

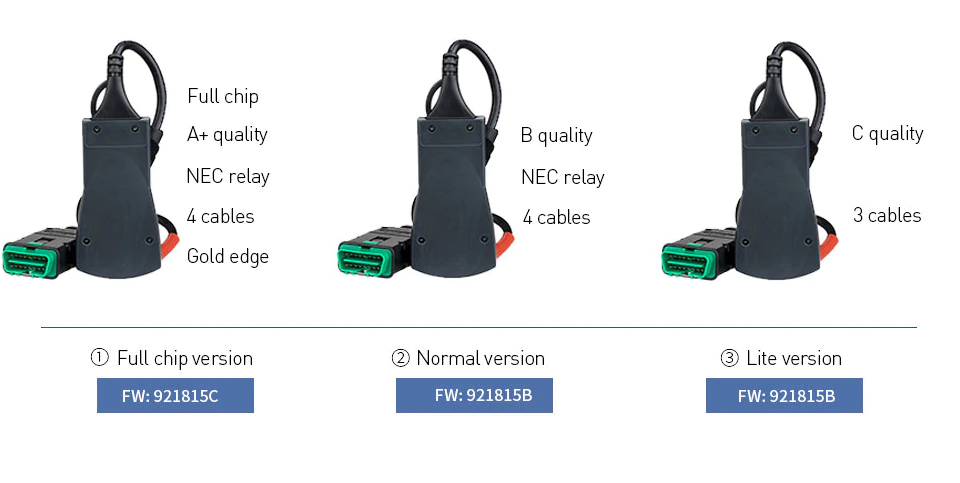

🔍 Identify your interface:
-
921815C or 963830C ➜ ✅ FULL CHIP interface
➡️ You can proceed directly to the installation and launch of Diagbox. -
963830B or 921815B ➜ ⚠️ LITE interface
➡️ You absolutely must flash the interface for it to be recognized in Diagbox.
⚠️ Important note : Although this flash does not guarantee improved performance, it is essential to ensure compatibility with the software.
❓ What is a FULL CHIP interface?
A FULL CHIP interface contains all the electronic components necessary to communicate with the vast majority of computers , from the late 90s to today.
It also offers enhanced electrical protection , preventing any potential damage to your computer.
🛠️ Flashing procedure to upgrade your LITE interface to version "C"
1. Download the necessary software:
Download PSA Interface Checker from this link:
👉 PSA Interface Checker
2. Connecting the interface:
-
Connect your LITE probe (USB) to your PC.
-
Launch the PSA Interface Checker software.
3. Flashing steps:
STEP 1:
Click on ACTIVATE
STEP 2:
Click on SERIAL REFERENCE
STEP 3:
Click on SELECT FILE
➡️ Select the file:
firmware_NLC_pour flash serial B to C.COM
Then click on DOWNLOADING
Waiting time:
Let the process run until you see the message:
DOWNLOAD FAILED!!!
➡️ This indicates that the procedure is complete.
The green LED on the interface should come back on.
4. Finalization:
-
Disconnect the USB interface.
-
Plug it back in.
-
Restart PSA Interface Checker and repeat the following steps:
-
Click on ACTIVATE
-
Click on VERSION
-
Click on SERIAL REFERENCE
-
➡️ Check that the information has been updated.
🟢 Your interface is now ready to be used with Diagbox.
